JEOL 2010 LAB6 TEM
A comparative table of the TEM systems available in the MRL is given here.

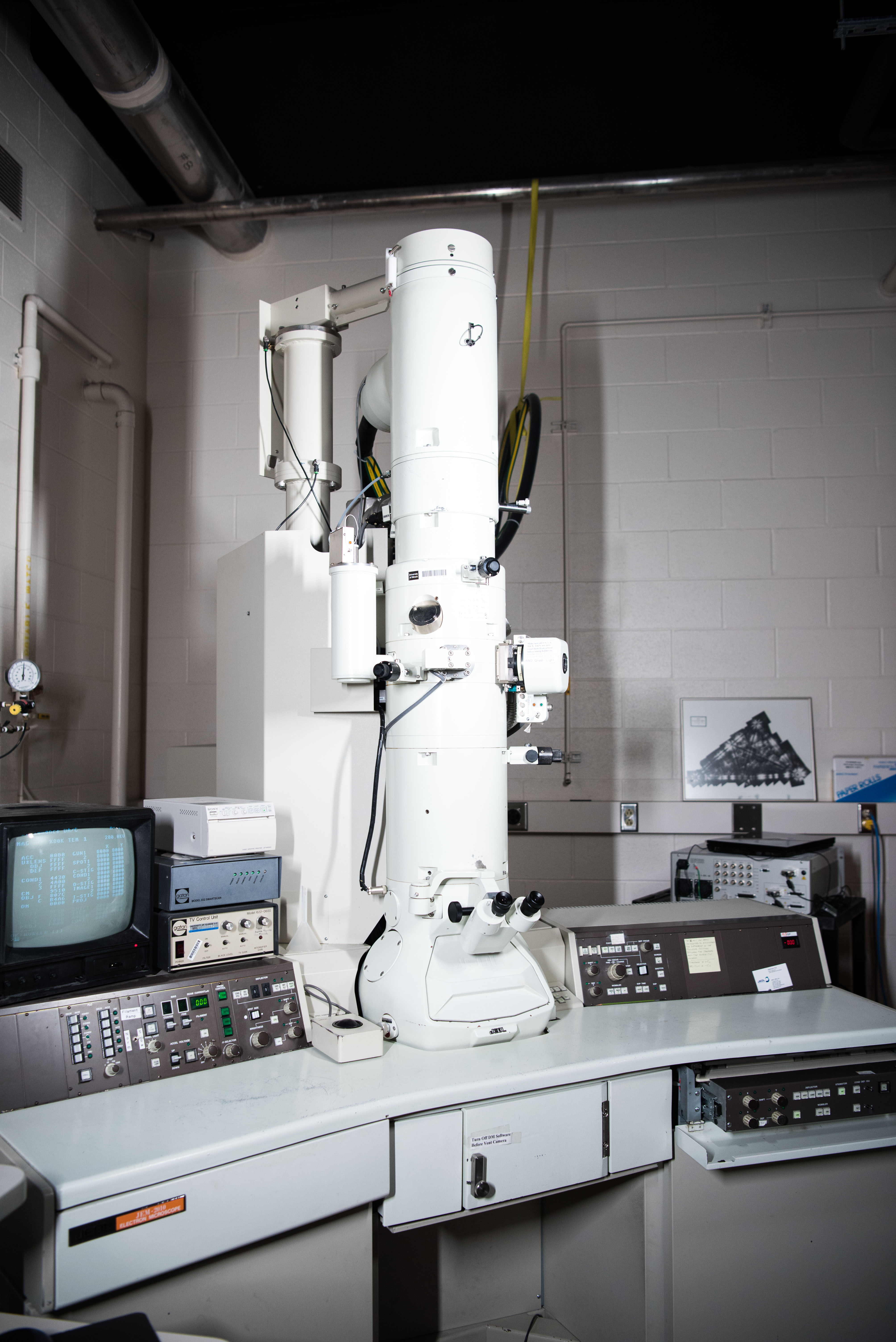

The JEOL 2010 LaB6 is a conventional TEM. It is optimized for BF/DF imaging, diffraction and high sample tilts. It operates at 80, 100, 120 and 200kV. The 2010 LaB6 is equipped with a combined video rate/slow scan camera for real time imaging and final image recording. A double tilt holder is available with 35/24 degrees of tilt. Double tilt heating and liquid N2 stages are available.
Specifications:
- LaB6 filament electron gun
- Cs = 1.4mm
- Energy 80, 100, 120 and 200kV
- Tilt 35/24 degrees on two axes
- Point resolution = 0.194 nm, Lattice Resolution: 0.14 nm, OL Focal length: 1.8 mm
- Information Limit > 0.14nm
- Lens Type-Side entry (Condenser/Objective)
Attachments:
- Digital Imaging - Gatan SC1000, 4000x2600 pixels
- Computer Control - Digital Micrograph
- Free Lens Control 900ºC double tilt holder
- Liquid N2 double tilt holder
