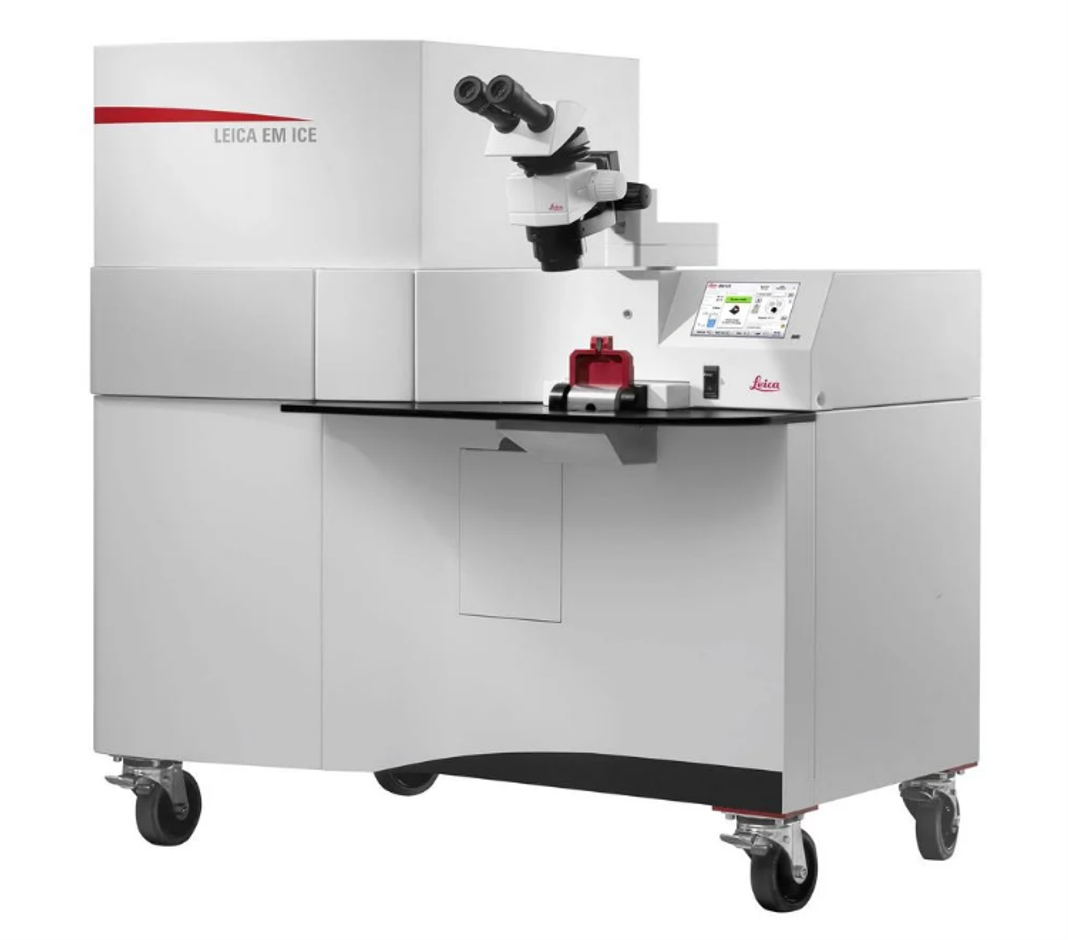

Leica EM ICE High-Pressure Freezer
High-Pressure Freezer Leica
The Leica EM ICE High-Pressure Freezer (HFP) is an advanced, automated high-pressure freezing system that uses a combination of a high-cooling rate via liquid nitrogen with high pressure (~2100 bar) to enable the vitrification and cryo-preservation of samples up to 200µm thick. HPF is the gold-standard for the preservation of biological samples for electron microscopy techniques, allowing samples to be viewed in their native, hydrated state. The rapid speed of HPF freezing allows for the capture of highly dynamic processes with millisecond precision. The EM ICE offers a range of different specimen holder types to accommodate a wide range of sample types and downstream applications, including freeze substitution and cryo-ultramicrotomy.
For examples of what this instrument can do, please see: https://www.leica-microsystems.com/products/sample-preparation-for-electron-microscopy/p/leica-em-ice/app/
Specifications:
- Types of Samples: cell suspensions, monolayers, tissues, hydrogels, etc.
- Available holders: 3 or 6mm planchets for freeze-substitution or cryo-sectioning, copper tubing for cryo-sectioning, sapphire discs for CLEM preparation
- Size limitations: 200µm thickness, up to 6mm diameter
- Applications: Freeze-substitution and resin embedding for conventional TEM or SEM analysis, cryo-sectioning for cryo-TEM imaging, cryo-electron tomography, or sub-tomogram averaging
- Have an idea that’s not listed here? Just ask!

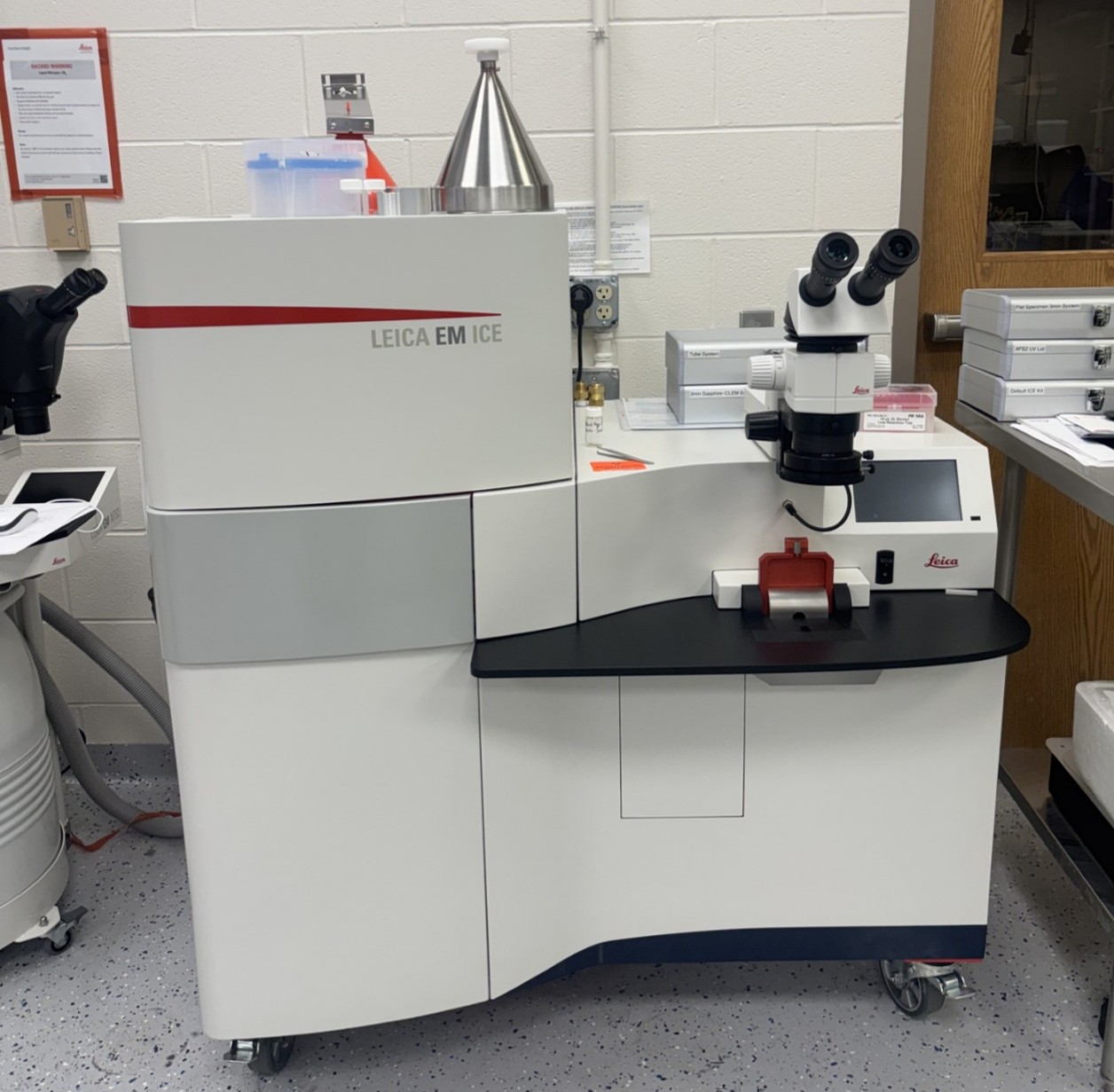

This tool can be found in the CARVER BioMaker Laboratory, MRL 0016
