Bruker VERTEX 70 FTIR

Bruker VERTEX 70 FTIR

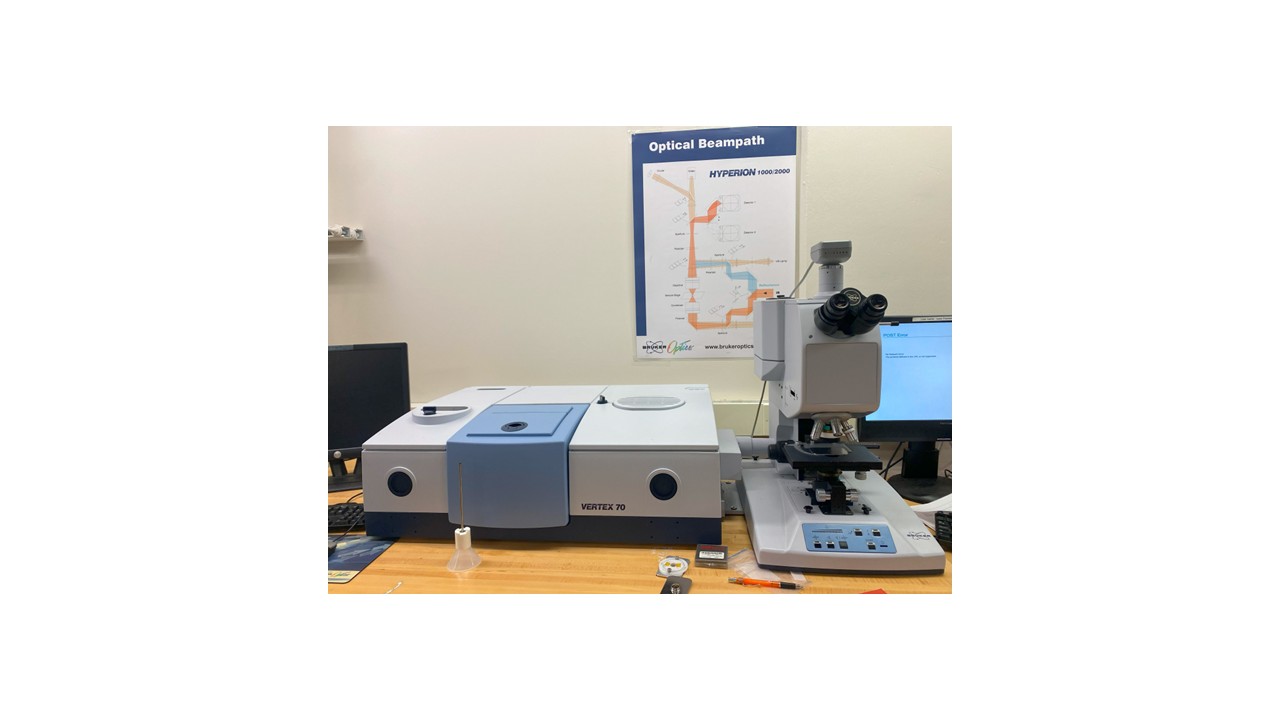

The Bruker VERTEX 70 FTIR system, coupled with the Hyperion 1000 IR microscope (manual xy-stage, 15× IR objective), enables both transmission and reflectance measurements with a spatial resolution down to 20 µm. The instrument provides spectral coverage from mid-infrared (MIR) to near-infrared (NIR), spanning 400 – 12,000 cm⁻¹.

Key Features

• Sample Visualization:

Pixelink CCD camera (Model: PL-A662) and LCD monitor

• Spatial Resolution:
• Minimum measurement area: 20 µm (transmission and reflectance)
• Light Sources:
• NIR halogen lamp (12,800 – 4,000 cm⁻¹)
• MIR Globar source (4,000 – 400 cm⁻¹)
• Beamsplitter Options:
• KBr (7,500 – 370 cm⁻¹)
• CaF₂ (15,000 – 1,200 cm⁻¹)
• Quartz VIS (25,000 – 9,000 cm⁻¹)
• Detector Options:
• Main compartment:
• DLaTGS (12,000 – 250 cm⁻¹)
• MCT (12,000 – 600 cm⁻¹)
• Microscope:
• InSb (10,000 – 850 cm⁻¹)
