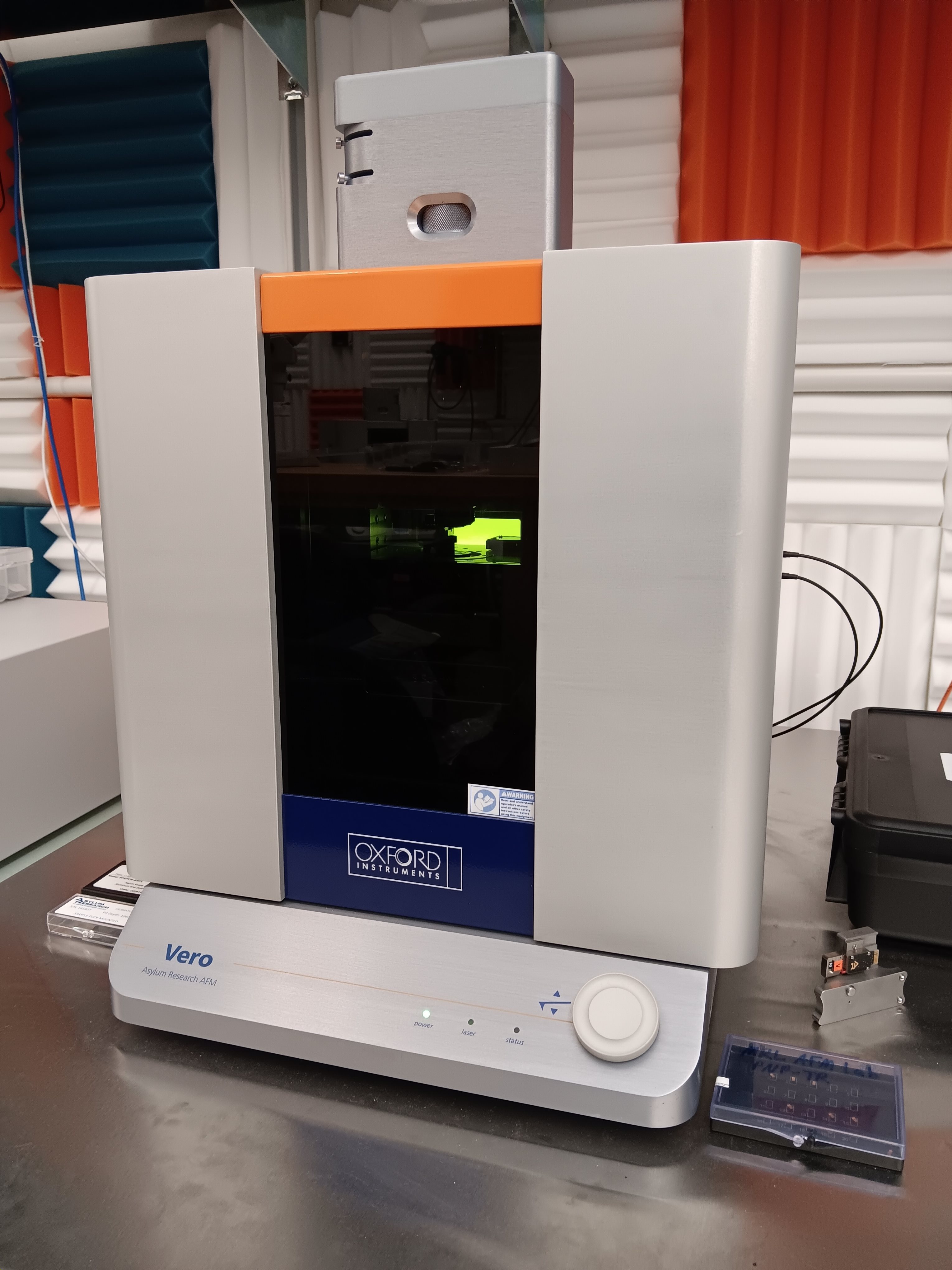

AFM - Asylum Research Vero
The Vero is a state-of-the-art interferometric AFM, featuring exceptionally low noise and fast scanning capabilities in addition to advanced scanning modes in air or liquid environments. Maximum lateral scan size on this instrument is 30 µm x 30 µm, and maximum vertical range is 5 µm.
The Oxford Instruments Asylum Research Vero S AFM builds on the popular, easy-to-use Cypher AFM design. The unique feature of the Vero is the QPDI interferometric cantilever detection which measures the vertical displacement of the cantilever instead of the deflection of the cantilever. This minimizes artifacts and ambiguities resulting from changes to local cantilever angle, and it also decreases the noise floor of the instrument related to cantilever detection for more sensitive measurements.
The Vero at MRL includes these upgrades:
- blueDrive photothermal excitation
- Fast Force Mapping
In addition to modes requiring no additional hardware, the Vero is compatible with the following Cypher accessories (shared with MRL's Cypher S):
- Droplet cantilever holder
- Dual-gain ORCA conductive AFM cantilever holder
- Air Temperature Controller (contact staff to perform the hardware swap)
- Scanning Tunneling Microscopy
How to cite this instrument
The instrument is a Vero S AFM from Oxford Instruments Asylum Research (Santa Barbara, CA). If blueDrive was used, you may specify that the instrument is equipped with blueDrive photothermal excitation.
This instrument was made possible by the support of the University of Illinois Grainger College of Engineering and the Illinois MRSEC. Publications and presentations using data obtained from this instrument must include the following statements acknowledging the MRL Facilities and the Illinois MRSEC:
... was carried out in part in the Materials Research Laboratory Central Research Facilities, University of Illinois. The authors acknowledge the use of facilities and instrumentation supported by NSF through the University of Illinois at Urbana-Champaign Materials Research Science and Engineering Center DMR-2309037.
