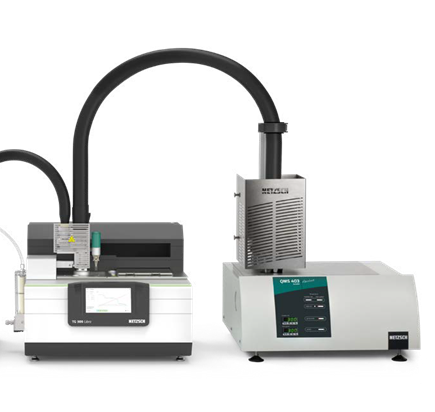

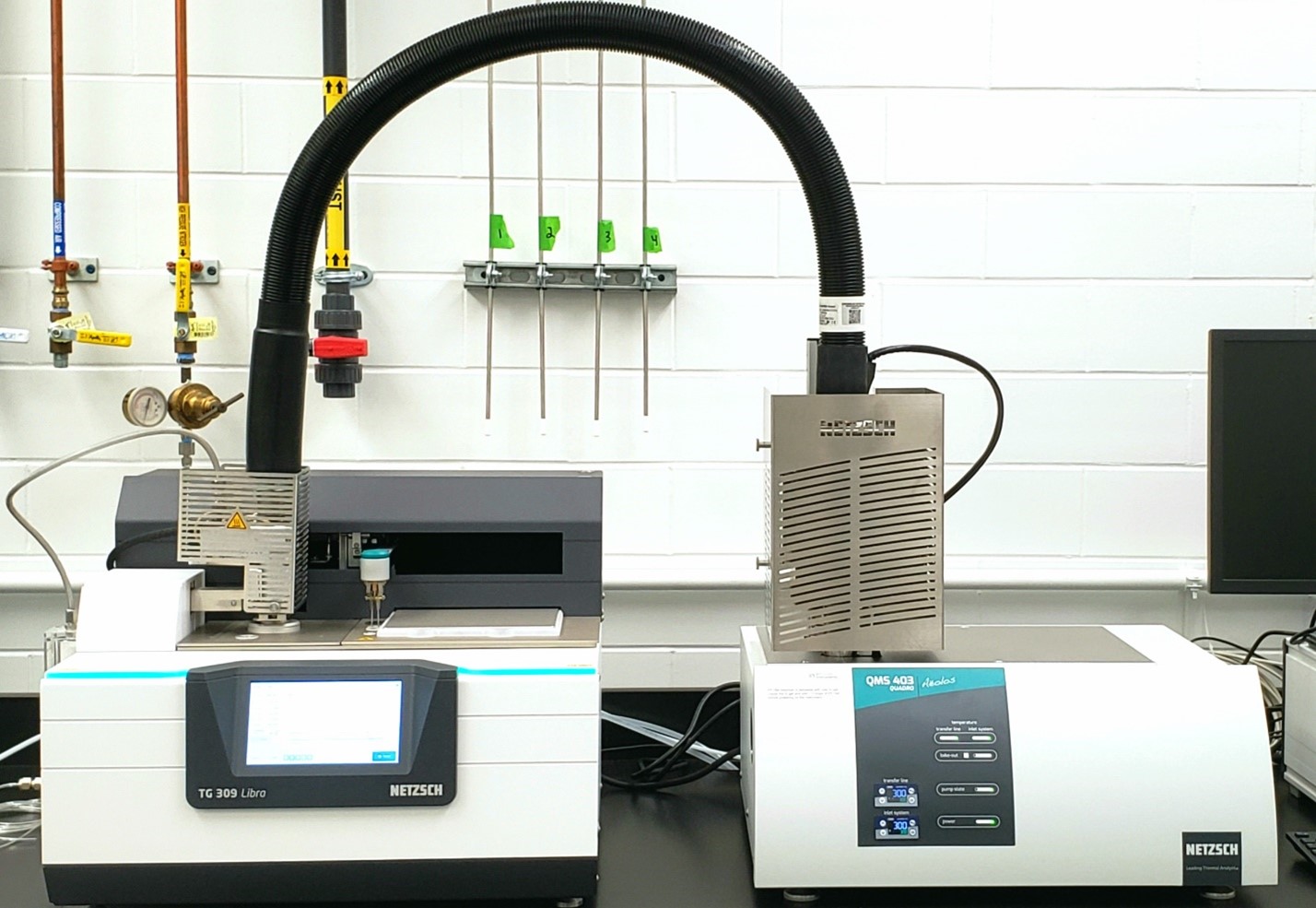

Netzsch Thermogravimetric Analysis with Mass Spectrometry (TGA-MS)

Thermogravimetry (TGA) coupled with mass spectrometry (MS) boosts the capability of standalone TGA systems by including the ability to analyze the chemical composition of the gas(es) evolved from a material as it is heated. This technique is also known as evolved gas analysis (EGA). As the material undergoes a precisely controlled temperature protocol in the TGA, the volatile components are continuously channeled to the MS, via a heated transfer line, for detection of composition (see diagram below). Thus, the products of each mass change step in the TGA can be chemically identified to improve the understanding of the thermal degradation pathways of the material. See below for TGA-MS specifications and accessories.

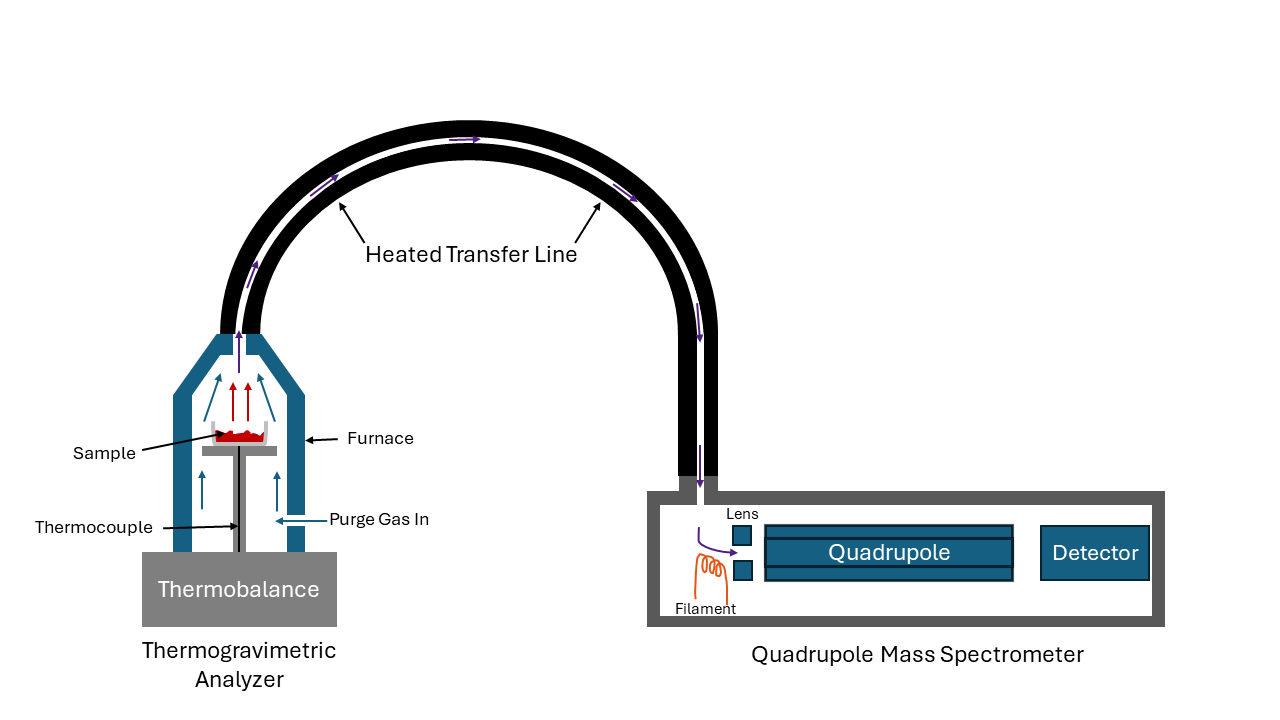

TGA-MS Internal Diagram

TGA Specifications:

• Temperature Range: RT – 1100 °C
• Max. Heating Rate: 200 °C/min
• Max Sample Weight (including crucible): 2 grams
• Gas Inlets: 4 plus vacuum option
• 192-position autosampler with protective cover and gas flow
• c-DTA® mode
• Temperature modulated TGA
• SuperRes® mode
• Peak Searching and Identification

Mass Spectrometer Specifications:

• Mass Range: 1 – 512 amu
• Resolution: 0.5 amu – 1.5 amu
• Detection Limit: < 100 ppb (gas-dependent)
• Spectrometer Type: Hyperbolic Quadrupole with pre-filter
• Detector Type: SEM (Dynode multiplier) with integrated Faraday cup
• Transfer line Temperature: 300 °C (max.)
• Measurement modes: Analog, Bar Graph and Individual mass selection
